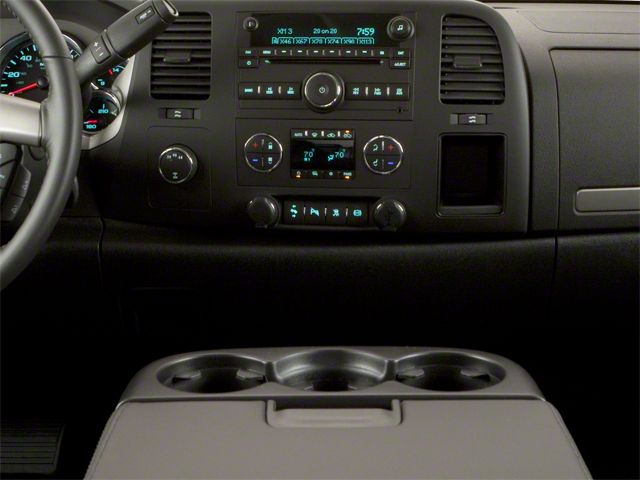

• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Audio system feature, Bose premium speaker system with sub-woofer in center console
• Audio system, AM/FM stereo with CD player and MP3 playback USB port, auxiliary input jack, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), automatic volume, TheftLock and 36 cross-band presets
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Coat hooks, rear driver and passenger side

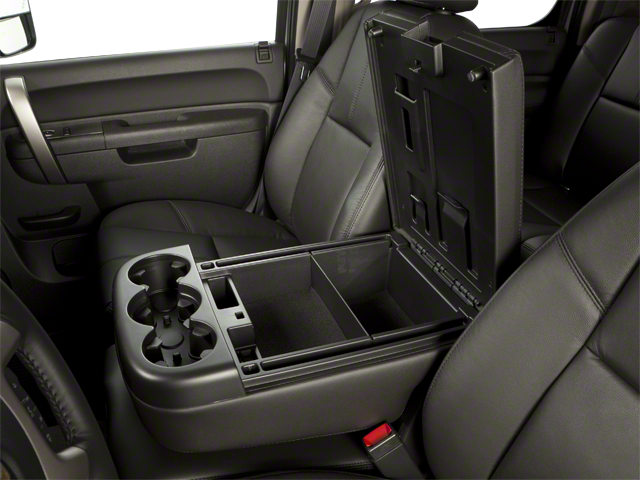

• Console, floor with storage compartment, 2 auxiliary power outlets and dual cup holders
• Cruise control, electronic with set and resume speed, located on steering wheel
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Door locks, power includes Remote Keyless Entry
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview auto-dimming
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Remote vehicle starter system includes Remote Keyless Entry with 2 transmitters, panic button and content theft alarm (Remote Keyless Entry does not lock/unlock tailgate.)
• Seat adjuster, driver 10-way power
• Seat adjuster, front passenger 10-way power

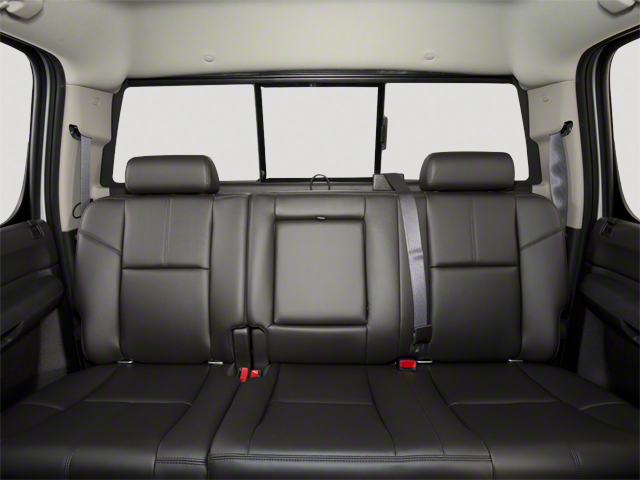

• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)

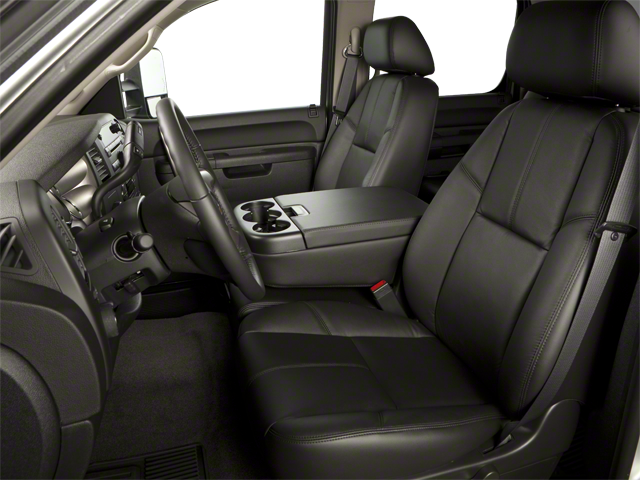

• Seats, front bucket includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console and storage pockets
• Seats, Leather-appointed front seats
• SiriusXM Satellite Radio (subscription required)
• Steering wheel controls, mounted audio controls

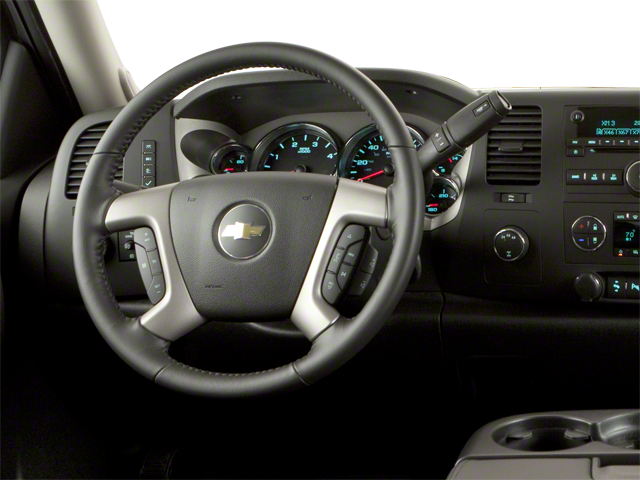

• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

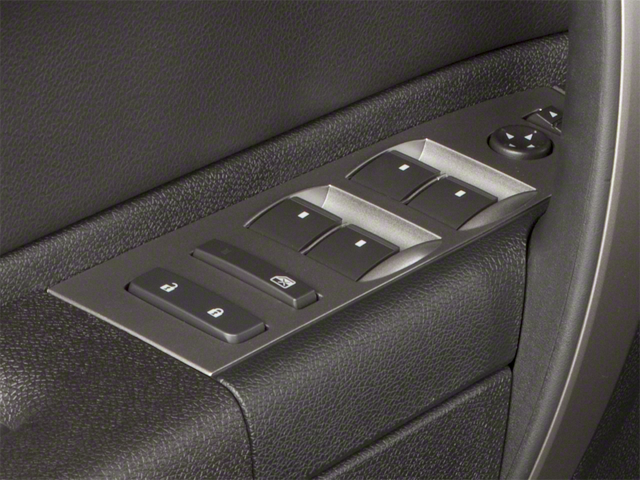

• Windows, power with driver Express-Down (Includes front passenger Express-down.)

• Air cleaner, high-capacity
• Alternator, 125 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Differential, heavy-duty automatic locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Pickup box, Fleetside
• Rear axle, 3.73 ratio
• Steering, power, recirculating ball
• Suspension, front independent, torsion bar
• Trailer brake controller, integrated
• Trailering equipment, heavy-duty includes trailering hitch platform and 2.5- inch receiver with 2" adapter, 7-wire harness (harness includes wires for: park lamps, backup lamps, right turn, left turn, electric brake lead, battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector, wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (JL1) integrated trailer brake controller (Will be deleted if (ZW9) pickup box delete is ordered.)
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models)

• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Automatic Crash Response
• Daytime Running Lamps with automatic exterior lamp control
• Door locks, rear child security (Crew Cab models only.)
• OnStar Equipped (subscription required)
• OnStar Turn-by-Turn Navigation
• Stolen Vehicle Assistance

LTZ PLUS PACKAGE

• includes (UG1) Universal Home Remote
• (A60) locking tailgate
• (PPA) EZ-Lift tailgate
• (JF4) power-adjustable pedals
• (UD7) Rear Parking Assist and (S41) Rear wheelhouse liner
• LPO.

SEATS, FRONT BUCKET

• includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control
• heated seat cushions and seatbacks
• 2-position driver memory
• adjustable outboard head restraints
• floor console and storage pockets (STD)

LPO, ASSIST STEPS, CHROMED TUBULAR, 6" OVAL

• (dealer installed)

LPO, ALL-WEATHER FLOOR MATS

• Ebony deep ribbed rubber (Extended and Crew Cab models also include rear floor mats)

WHEELS, 17" (43.2 CM) FORGED POLISHED ALUMINUM

• (STD)

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode

REAR PARKING ASSIST, ULTRASONIC

• with audible warning

TIRE, SPARE LT235/80R17E HIGHWAY

• includes steel spare wheel (spare wheel will not cosmetically match the other 6 wheels) (STD)

TIRES, LT235/80R17E ALL-SEASON HIGHWAY, BLACKWALL

• (STD)

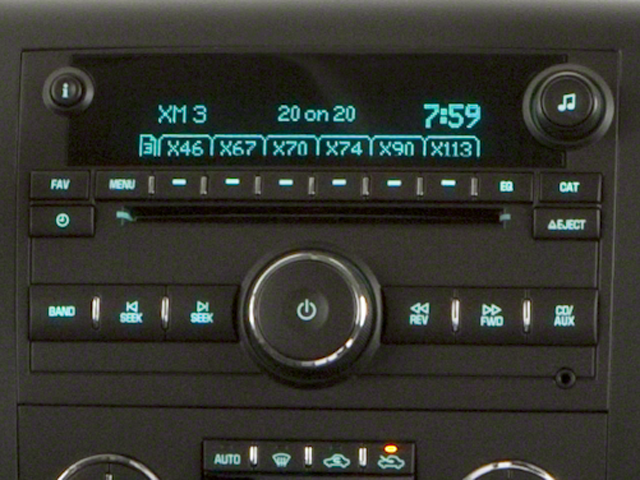

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER AND MP3 PLAYBACK

• USB port
• auxiliary input jack
• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• automatic volume
• TheftLock and 36 cross-band presets (STD)

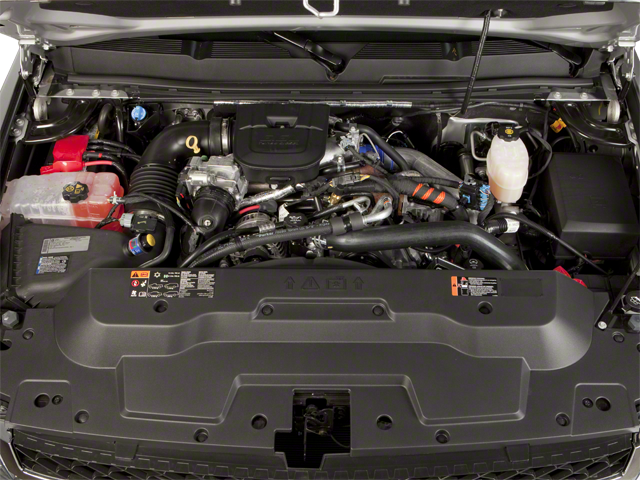

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake
• (TUV) heavy-duty dual
• 730 cold-cranking-amp battery and (K05) engine block heater.)

LTZ PREFERRED EQUIPMENT GROUP

• includes standard equipment

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• includes 35mm monotube shocks and 34mm front stabilizer bar (STD)

LIGHT CASHMERE/DARK CASHMERE, LEATHER-APPOINTED FRONT SEAT TRIM

• (Interior color
• including seat trim
• has lighter/darker two-tone effect.)

BATTERY, HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS, MAINTENANCE-FREE

• with rundown protection and retained accessory power

• LICENSE PLATE FRONT MOUNTING PACKAGE
• LTZ PLUS PACKAGE includes (UG1) Universal Home Remote (A60) locking tailgate (PPA) EZ-Lift tailgate (JF4) power-adjustable pedals (UD7) Rear Parking Assist and (S41) Rear wheelhouse liner LPO.
• UNIVERSAL HOME REMOTE
• ENGINE BLOCK HEATER
• SEATS FRONT BUCKET includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control heated seat cushions and seatbacks 2-position driver memory adjustable outboard head restraints floor console and storage pockets (STD)
• LPO ASSIST STEPS CHROMED TUBULAR 6" OVAL (dealer installed)
• LPO ALL-WEATHER FLOOR MATS Ebony deep ribbed rubber (Extended and Crew Cab models also include rear floor mats)
• WHEELS 17" (43.2 CM) FORGED POLISHED ALUMINUM (STD)
• REAR AXLE 3.73 RATIO
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• REAR PARKING ASSIST ULTRASONIC with audible warning
• TIRE SPARE LT235/80R17E HIGHWAY includes steel spare wheel (spare wheel will not cosmetically match the other 6 wheels) (STD)
• TAILGATE EZ-LIFT
• TIRES LT235/80R17E ALL-SEASON HIGHWAY BLACKWALL (STD)
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AND MP3 PLAYBACK USB port auxiliary input jack seek-and-scan digital clock auto-tone control Radio Data System (RDS) automatic volume TheftLock and 36 cross-band presets (STD)
• PEDALS POWER-ADJUSTABLE FOR ACCELERATOR AND BRAKE
• PAINT SOLID
• MIRROR INSIDE REARVIEW AUTO-DIMMING WITH REAR CAMERA DISPLAY
• TAILGATE LOCKING
• ENGINE DURAMAX 6.6L TURBO DIESEL V8 B20-DIESEL COMPATIBLE (397 hp [296.0 kW] @ 3000 rpm 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake (TUV) heavy-duty dual 730 cold-cranking-amp battery and (K05) engine block heater.)
• REAR VISION CAMERA
• LTZ PREFERRED EQUIPMENT GROUP includes standard equipment
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY includes 35mm monotube shocks and 34mm front stabilizer bar (STD)
• LAMPS SMOKED AMBER ROOF MARKER
• SUMMIT WHITE
• LIGHT CASHMERE/DARK CASHMERE LEATHER-APPOINTED FRONT SEAT TRIM (Interior color including seat trim has lighter/darker two-tone effect.)
• GVWR 13 025 LBS. (5908 KG) WITH DUAL REAR WHEELS
• BATTERY HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS MAINTENANCE-FREE with rundown protection and retained accessory power
• EXHAUST BRAKE
• Dual Rear Wheels
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Satellite Radio
• Requires Subscription
• Premium Sound System
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Leather Seats
• Power Driver Seat
• Power Passenger Seat
• Rear Bench Seat
• Power Outlet
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Power Windows
• Keyless Entry
• Power Door Locks
• Security System
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Cruise Control
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Telematics
• Navigation from Telematics
• Smart Device Integration
• Requires Subscription
• Telematics
• Requires Subscription
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Requires Subscription
• Child Safety Locks

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 9375
• Curb Weight - Front (lbs): 3881
• Curb Weight - Rear (lbs): 3230
• Gross Vehicle Weight Rating Cap (lbs): 13025
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 18000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1275
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 22300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5575
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2175
• Maximum Trailering Capacity (lbs): 22300
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 9750
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9750
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.00
• Shock Absorber Diameter - Rear (mm): 35.00
• Stabilizer Bar Diameter - Front (in): 1.32
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QQO
• Rear Tire Order Code: QQO
• Spare Tire Order Code: ZQO
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Spare Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 2515
• Rear Tire Capacity (lbs): 2470
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 50.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.70
• Length, Overall w/o rear bumper (in): 259.10
• Width, Max w/o mirrors (in): 95.90
• Height, Overall (in): 77.90
• Overhang, Front (in): 38.80
• Overhang, Rear w/o bumper (in): 52.60
• Front Bumper to Back of Cab (in): 150.90
• Cab to Axle (in): 56.00
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.90
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.60
• Ground Clearance, Rear (in): 8.40
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.50
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.60
• Cargo Volume (ft³): 75.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.30
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.30
• Second Head Room (in): 40.60
• Second Leg Room (in): 39.00
• Second Shoulder Room (in): 65.20
• Second Hip Room (in): 65.50
• Summary

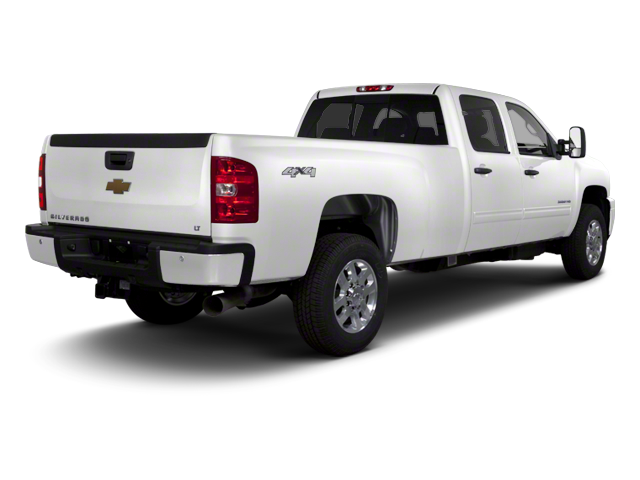

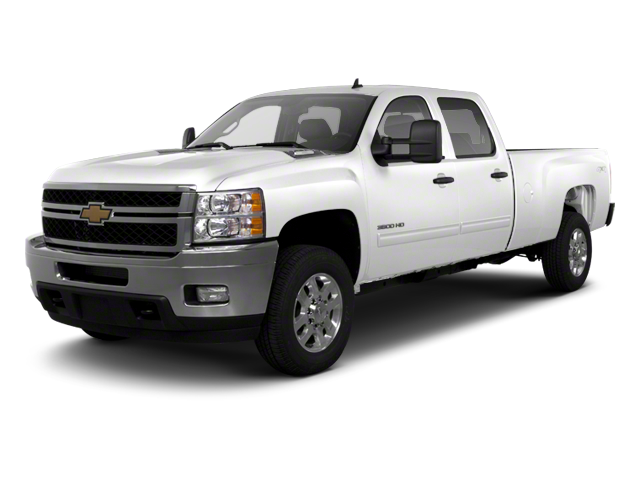

• Vehicle Name: Chevrolet Silverado 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
